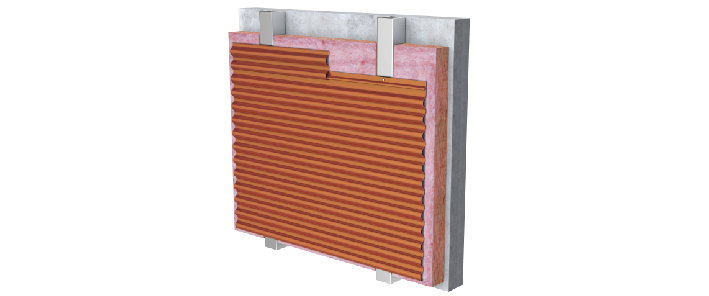

Corrugated Panel System

Corrugated Panel System

Its typical fluent sine wave line makes it possible to show complicated and fancy effect.

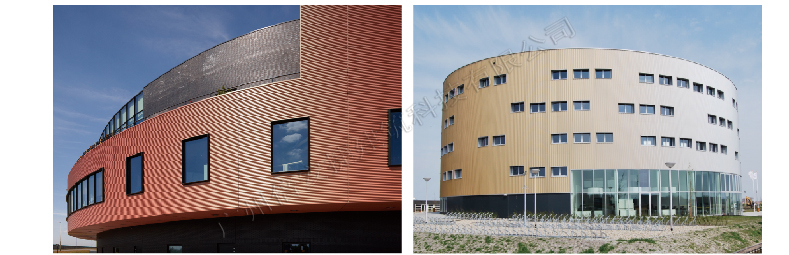

Horizontal,vertical and diagonal installations can match complicated panel structures, and can also realize optical delamination effect between facade panels.The delicate effect produced by stagger light and shadow can construct attractive and dramatic optical feeling upon large areas.

Wave height: 18mm  32mm
Common width:825mm  810mm
Common thickness: 0.7mm  0.8mm  0.9mm  1.0mm
Suitable slope: Usually waterproof layer should be paved.
Common raw material: Zinc-Cu-Ti, Copper, aluminum, Stainless steel, galvanized steel
