Horizontal Panel System

Horizontal Panel System

The advantage of horizontal panel is the wide selection of axial sizes. The selection scope of panel and side joint is 200mm-300mm and the variable joint widths is 1mm-30mm.

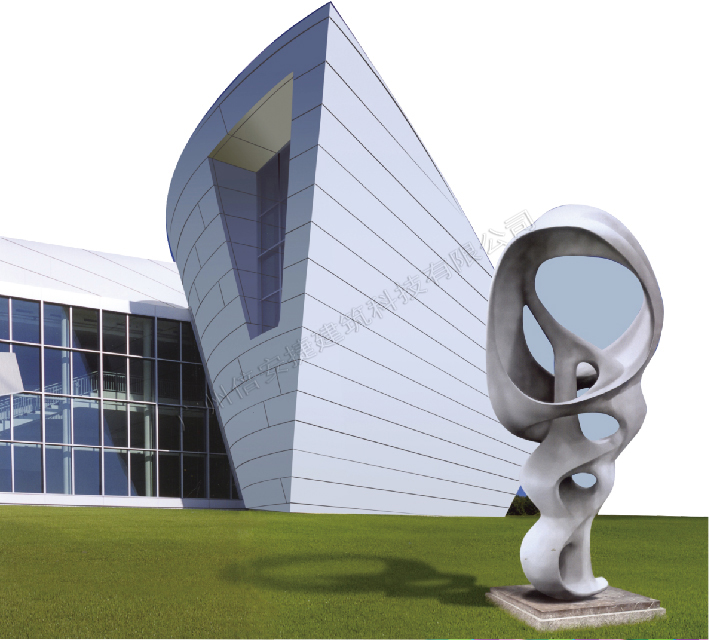

With flexible installation directions (horizontal, vertical and diagonal) and performance of different connecting widths, the horizontal panel can provide architects with great space to realize their design ideas.

Seam depth: 25mm
Seam width: 1mm-30mm  variable joint width
Commonly used width: 200mm  300mm
Commonly used thickness: 0.7mm  0.8mm  1.0mm
Suitable slope: Usually waterproof layer should be paved.
Commonly used materials: Zn-Cu-Ti, copper, aluminum, stainless steel, prepainted (Al/Zn coating) steel sheet.
