Edge Standing Seam System

Edge Standing Seam System

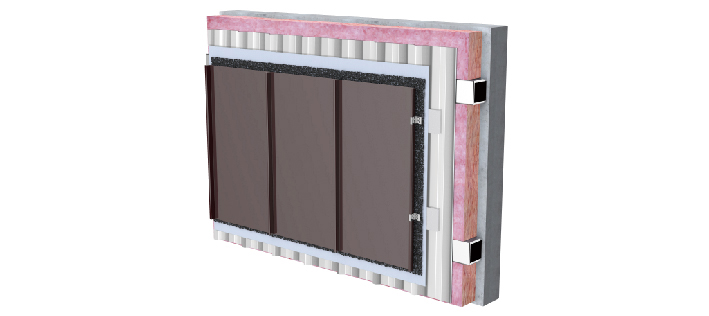

When the standing seam system connected with the independent motherboard in the portrait, it is commended to use angled standing seam system, which can improve the standing seam effect (about 12mm wide).
The current machine can produce exact standing seam size, and finish the occlusion procedure breezily with occluding machine. Motherboard in different lengths and widths can construct complicated and special sculpts.

Slab rib height: 25mm, 35mm
Common width: 250mm-530mm
Common thickness: 0.7mm, 0.8mm, 0.9mm, 1.0mm
Suitable slope: Usually waterproof layer should be paved.
Common raw material: Zinc-Cu-Ti, Copper, aluminum, Stainless steel, galvanized steel
