Flat Locking System

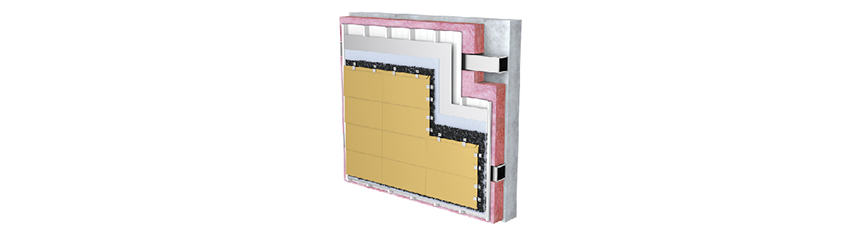

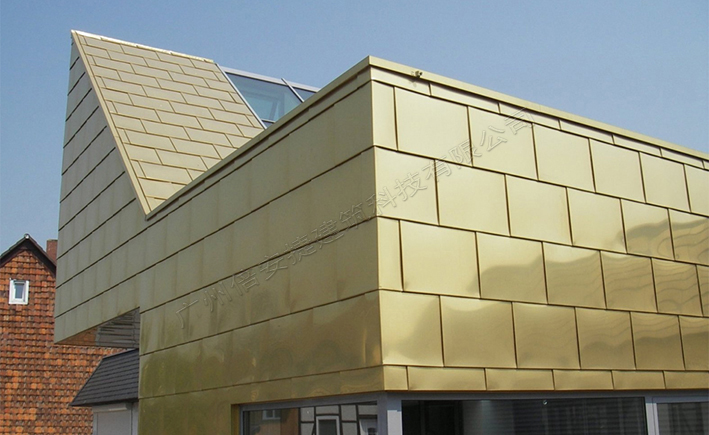

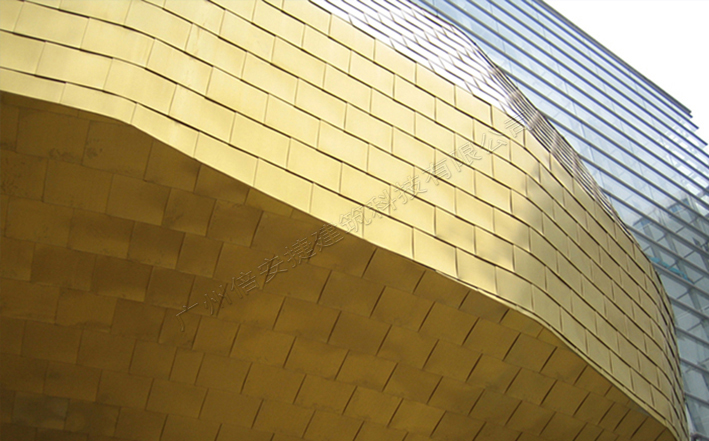

Flat Rectangular Locking System

It is mainly used in the wall of the large area,visual effect is very good. The special design style will come in the process of the naturalcarbonate zinc layer forming on the panel surface if the material is zinc.Size is available for customizing.

System Features:
- Strong sense of level, conspicuous visual effect, classical building style;
- Convenient installation: Can be installed onto the existing structure with fastener, without complicated mechanical fixing;
- Flat Rectangular Locking System is almost suitable for installation on any shape of building surface, and geometry diversification is allowed.
- It is suitable for ≥30° slop or wall. Usually waterproof materials should be paved onto the base.

Common Panels and Raw Materials
Common width: 400mm, 500mm, 600mm
Common thickness: 0.7mm, 0.8mm, 1.0mm
Common raw materials: Zinc-cu-ti, Copper, aluminum, stainless steel
Applicable environment: large scale of surface with ≥30°slope. Usually waterproof materials should be paved onto the base.

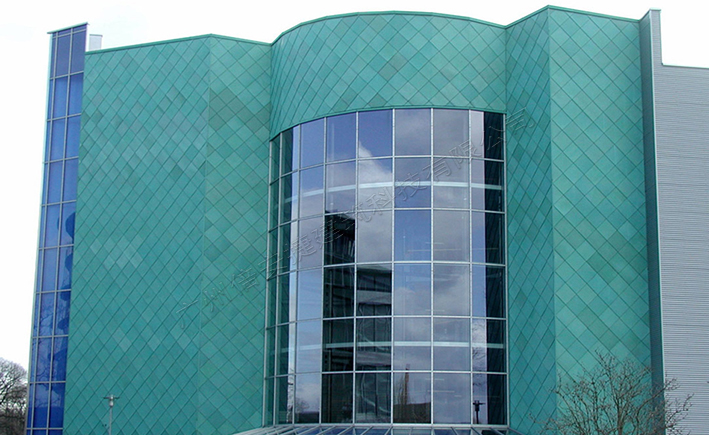

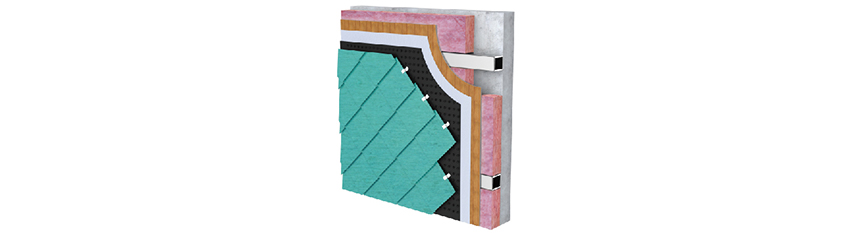

Diamond-Shaped Flat Locking System

Including the square and sharp-angled diamond flat locking system, which is different from traditional plate, there are convex edges on the front and concaves on the back, which can form a panel joint. The area of the diamond flat lock panel is small, and it can be used on verious design flexibly and cerat external wall with complex geometric design. For example, to cover the  dormant window, chimney and roof edge.

Common Panels and Raw Materials
Common width: 20mm, 300mm, 400mm
Common thickness: 0.7mm, 0.8mm,
Common raw materials: Zinc-cu-ti, Copper, aluminum, stainless steel
Applicable environment: large scale of surface with ≥30°slope. Usually waterproof materials should be paved onto the base.
