Tech-zip Typical System

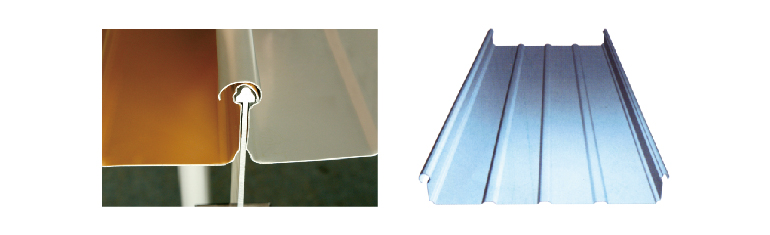

Tech-zip is a kind of Standing Seam Roofing System, with excellent appearance and performance. Its installation is fast and simple, without perforations. It has intact panel surface and good waterproofing property.

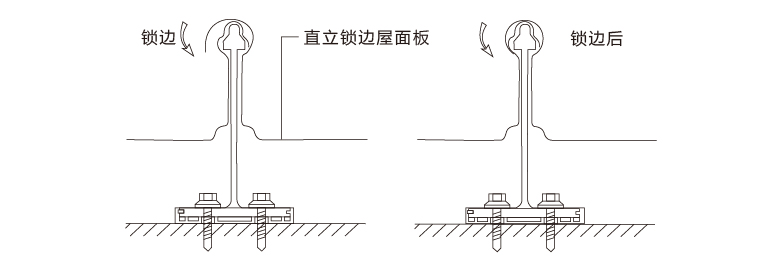

The Process of Buckling Edge

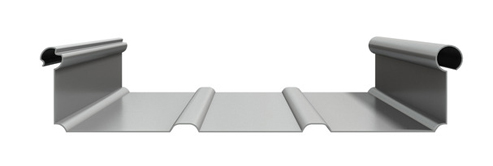

Whether its strength,appearance or building regulations that is of most importance, varying profile widths and two seam heights are available to meet your design requirements.

	Wide	High
	300	65
	330	65
	400	65
	430	65
	500	65

The unique formability of Tech-zip aluminum profiled panels enables design and functionality to be combined with technical perfection.  The range of shapes available – straight, tapered, or curved – opens up a whole variety of fascinating options for creating stunning architectural designs.

The ability to achieve extremely complex shapes and tight radii, and to transform computer-generated designs and structural principles into reality is now possible with the introduction of  Tech-zip TX fan-shaped bent plate . Even unconventional roof shapes are subject to no restriction.

Tech-zip Roofing System Characteristic

- The overall structure must be waterproof and drainage function
- Simple, fast machines combined volume of construction to facilitate economic
- Can be generated by the elimination of stress
- No connection, no screw holes, building hand the appearance of integrity
- Can be made from within the bend outside the arc and arc
- Right to choose a different texture and color
- Can be used as small as 1.5 ° slope of the roof
- Excellent wind pressure will be able to (with the floor), is particularly well suited to typhoons, torrential rains more areas

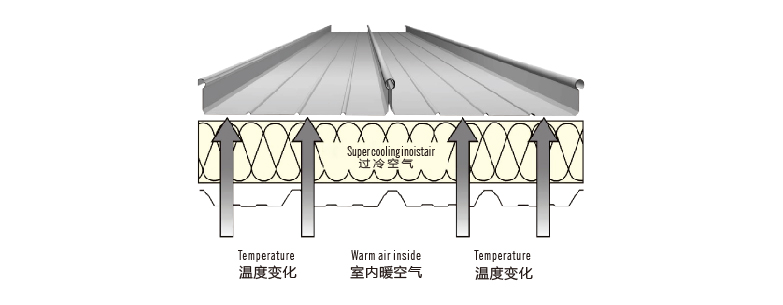

- Sound-absorbing layer to facilitate the laying of insulation
- Caulking glue without chemicals, from pollution and the problem of aging
- Roofing without the maintenance
- Can be produced on Construction site

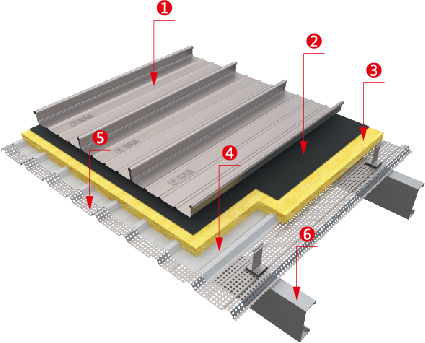

Standard Roofing System
High efficient Tech-zip standard roofing system is very economical and has high cost performance, which can satisfy most normal building projects’ needs.

	① Roofing Panel
	②Waterproofing Membrane
	③ Mineral Wool Insulation
	④ Vapor Barrier Membrane
	⑤ Pre-forming Liner
	⑥ Purline

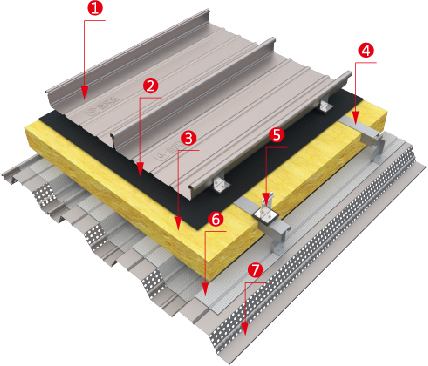

Long Span Composition System

Together with super strong and long span profiled steel panel, Tech-zip standard roof system can create a 4000mm span without any support, which can save space and working time, create a pleasing simplicity. This system is suitable for huge public buildings with net frame and H-type steel structure. satisfy most normal building projects’ needs.

	① Roofing Panel
	② Waterproofing Membrane
	③ Mineral Wool Insulation
	④ Purlin lining
	⑤ Clip with Thermal Break Pad
	⑥ Vapor Barrier Membrane
	⑦ Preforated Pre-forming Liner

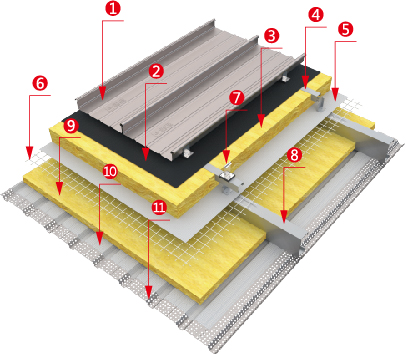

Multi-functional Composite Roofing System

Tech-zip standard system boast excellent water proofing property through adding a second layer of waterproof and sound-absorbing materials. The opposite-fixed perforated panels hides the roof structure, integrating with sound-absorption and ceiling decoration functions, which is suitable for stadium, exhibition hall, station, airport and other populated buildings of steel structure.

	① Roofing Panel
	② Waterproofing Membrane
	③ Mineral Wool Insulation
	④ Purlin lining
	⑤ Vapor Barrier Membrane
	⑥ Steel Mesh
	⑦ Clip with Thermal Break Pad
	⑧ Purline
	⑨ Acoustic Slab
	⑩ Vapor Barrier Membrane
	? Preforated Pre-forming Liner

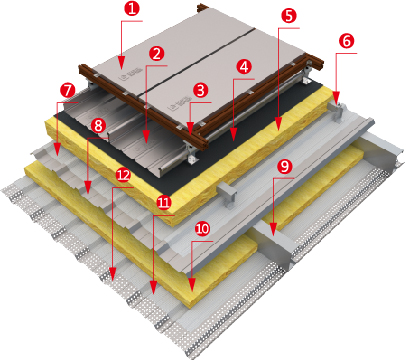

Multi-layer Composition System
